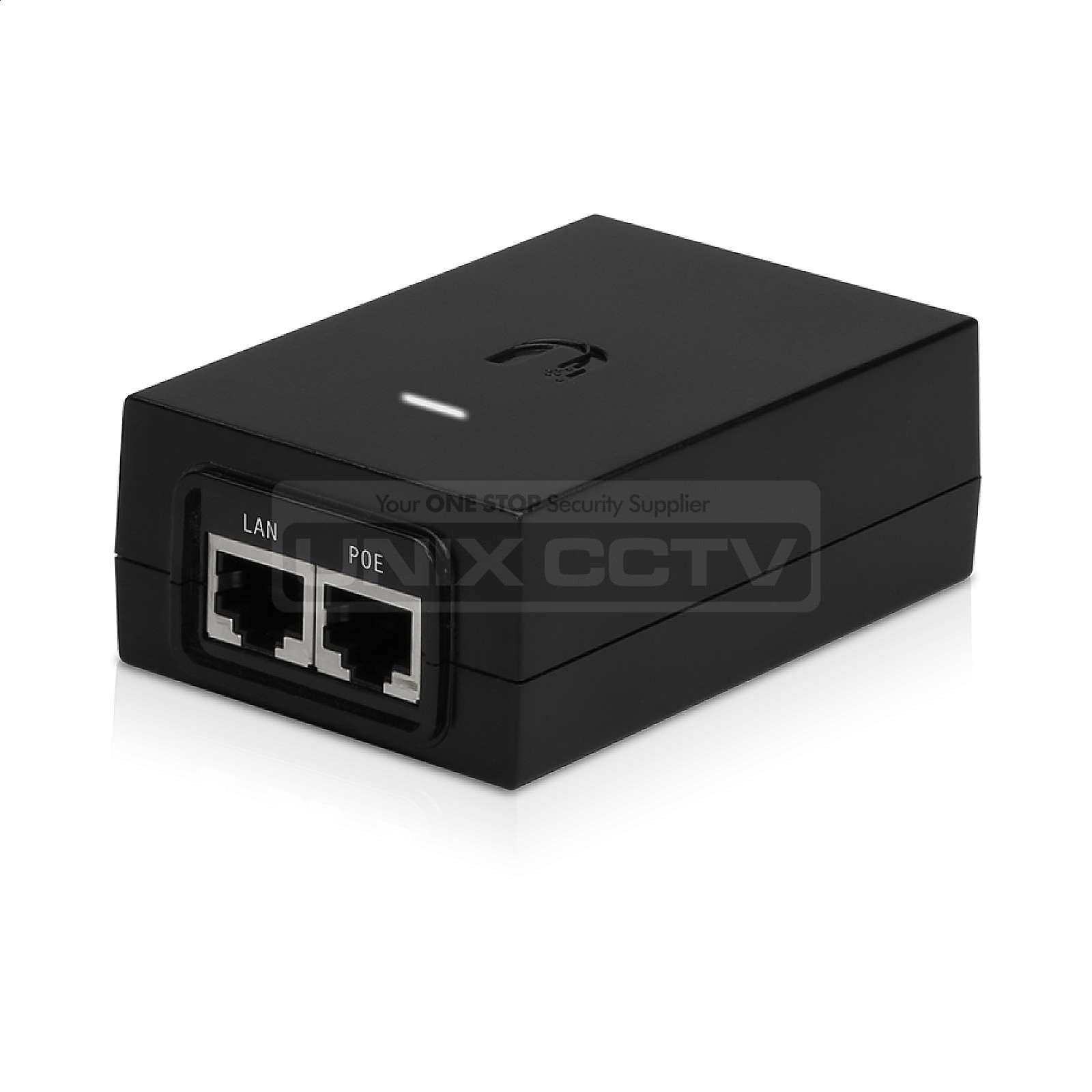

Ubiquiti® POE-24-24W-G | Gigabit PoE Adaptor, 24VDC @ 1.0A Output

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including: airFiber®, airMAX®, EdgeMAX®, mFi®, UniFi® AP, UniFi Video® / airVision®, UniFi LED, UFiber (* Check product specifications to verify PoE compatibility)
Ubiquiti PoE Adapter Compatibility with the airGateway®
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
FEATURES
Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Protection
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
SPECIFICATIONS
Dimensions
88 × 57 × 33 mm (3.47 × 2.24 × 1.30″)
Weight
158.5 g (5.59 oz)
Output Voltage
24VDC @ 1.0A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
Yes
Reset Button
Yes
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current
<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency
80+%
Output Ripple
1% Max.
Switching Frequency
65 kHz
Line Regulation
≤3%
Load Regulation
≤5%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40°C (32 to 104°F)
Storage Temperature
−30 to 70°C (−22 to 158°F)
Operating Humidity
35 to 95% Noncondensing
AC Connector
IEC-320 C6
Data IN / POE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 µs) Power
Peak Pulse Current
36A (10/1000 µs) Data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL
