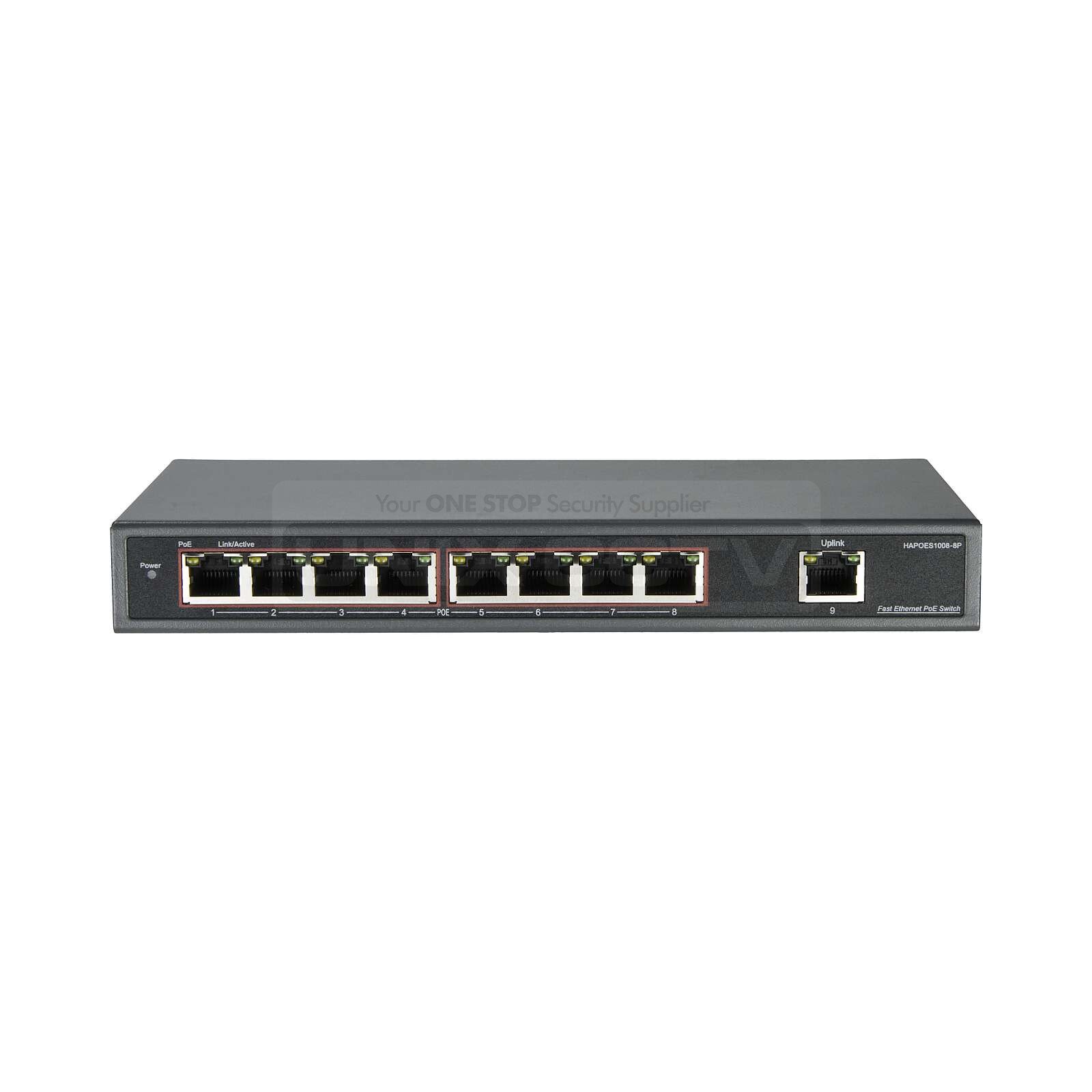

8+1 PoE Switch, 8CH PoE + 1CH Uplink, 123W

FEATURES
Conforms to IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
Provides 9 10/100/1000Base-TX ports
Provides 8 PoE injector and 65W power adapter
High back-plane bandwidth 10Gbps
IEEE802.3x Flow control
EMI standards comply with FCC, CE class B
SPECIFICATIONS
POWER
Power Supply
External Power Supply
Voltage Range
DC 48V
Consumption
123.2W for PoE
ETHERNET
Speed
1 ~ 8Port: 10 / 100 / 1000MbpsUplink: 10 / 100 / 1000Mbps
Transmission Distance
100Meter (328ft)
NETWORK SWITCH
Ethernet Standard
IEEE 802.3 / 802.3u / 802.3ab / 802.3af / at
Switching Capacity
18G
Transfer Rate
14,880 pps for 10Mbps148,800 pps for 100Mbps148,8000 pps for 1000Mbps
MAC Address
4K MAC address table
LINK / ACT
Green on
The port is connecting
Blinks
The port is receiving or transmitting data
Green off
The port is not linked successfully with the device
PoE
Orange on
PD is connected
Orange off
No PD is connected or power forwarding fails
PoEpin Assignment
V+ (RJ45 Pin 1,2) V- (RJ45 Pin 3,6)
WORKING ENVIRONMENT
Working Temperature
0°C ~ 40°C
Storage Temperature
−40°C ~ 70°C
Humidity (Non-condensing)
0 ~ 85%
MECHANICAL
Dimension (L x W x H)
218mm × 107mm × 29mm
Out Shell
Galvanized Sheet
Color
Gray
