Eyemax 8+2 Port PoE Gigabit Unmanaged Switch

Overview

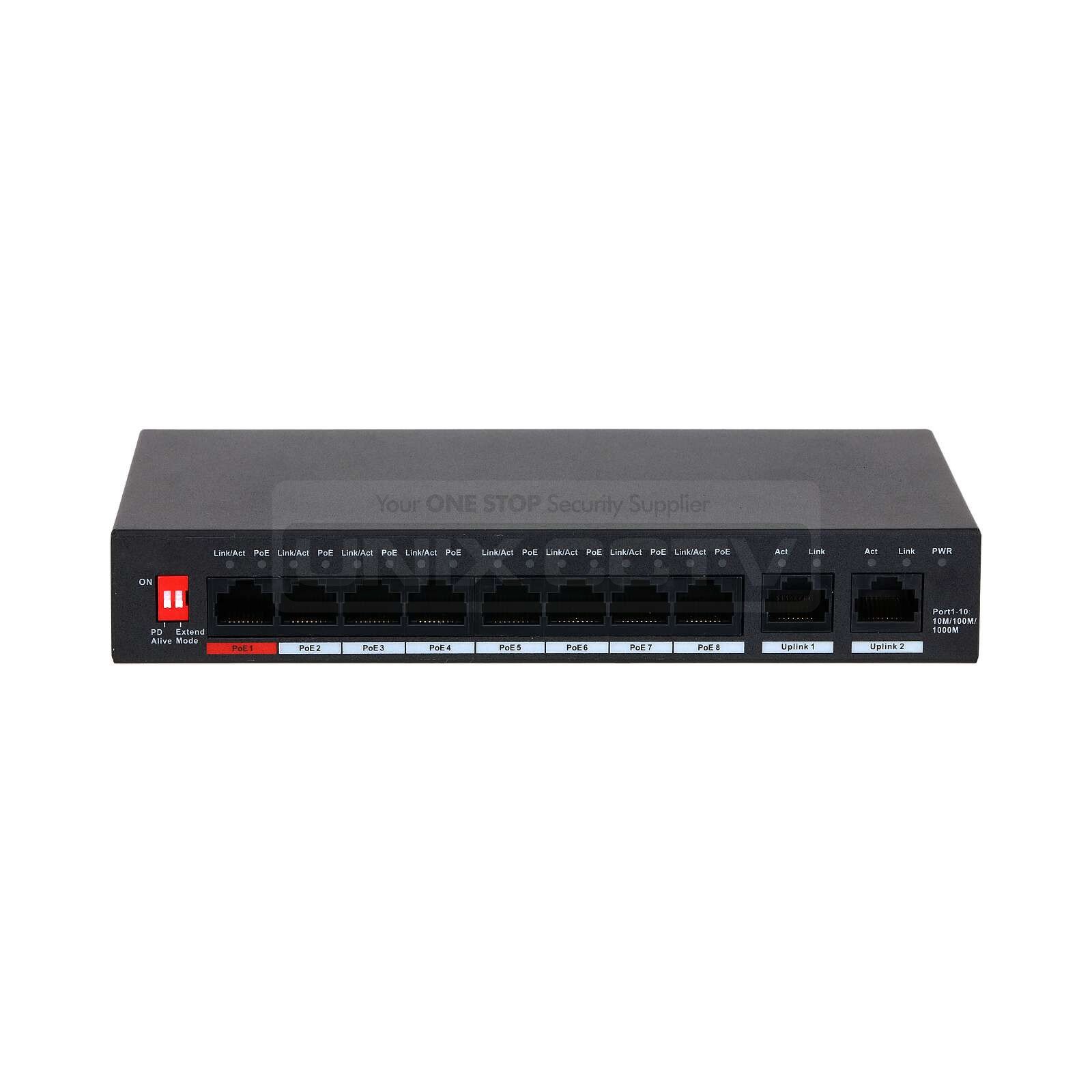

This PoE switch is an unmanaged desktop switch with 8× 10/100/1000 Mbps PoE ports and 2× uplink ports. It features two transmission modes (Extend On/Off), a red port supporting IEEE802.3bt and Hi-PoE standards, and a maximum power consumption of 90W. The PoE watchdog enables automatic maintenance and device restart, enhancing intelligent management and reducing costs.
Intelligent PoE
Ensures efficient power management with real-time monitoring, prioritizing key ports and preventing malfunctions from power fluctuations. Supports ultra-wide power supplies for IPC adaptability.
BT 90W
Red ports support IEEE802.3af/at/bt and Hi-PoE, delivering up to 90W per port for high-power devices.
PoE Watchdog
The PoE Watchdog detects and restarts failed ports automatically, ensuring stable IPC connections and reducing manual maintenance. It can be enabled via dial switch or web interface.
FEATURES
Intelligent PoE
8-pin assignment PoE power supply
Long distance PoE
PoE watchdog
BT 90W
All-giga ports
Wide working temperature
SPECIFICATIONS
Hardware
Data Transmission Port
Port 1–8: 8 × RJ-4510 / 100 / 1000 Mbps (PoE)Port 9 ~ 10: 2 × RJ-45 10 / 100 / 1000 Mbps (Uplink)
Power Supply
48 V- 57 V DC
Operaing Temperature
–10 °C to +55 °C (+14°F to +131°F)
Operating Humidity
5% – 95% (RH)
Storage Temperature
–20 °C to +70 °C (–4°F to +158°F)
Storage Humidity
5% – 95%(RH)
Power Consumption
Idling: 3 WFull load: 96 W
Performance
Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
Packet Buffer Memory
1.5 Mbit
MAC Table Size
4K
Communication Standard
IEEE802.3 / IEEE802.3u / IEEE 802.3ab / IEEE802.3x
PoE
PoE Standard
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power
96 W
Power Consumption Management
Yes
PoE Pin Assignment
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE
250 m long distance PoE transmission
General
Statics Protection
Air discharge: 8 kV Contact discharge: 6 kV
Thunder-proof
Common mode: 4 kVDifferential mode: 2 kV
Net Weight
0.50 kg (1.10 lb)
Gross Weight
1.32 kg (2.91 lb)

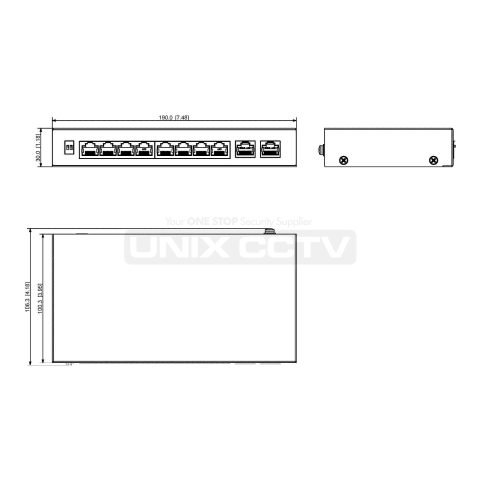

Product Dimensions
190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″)
