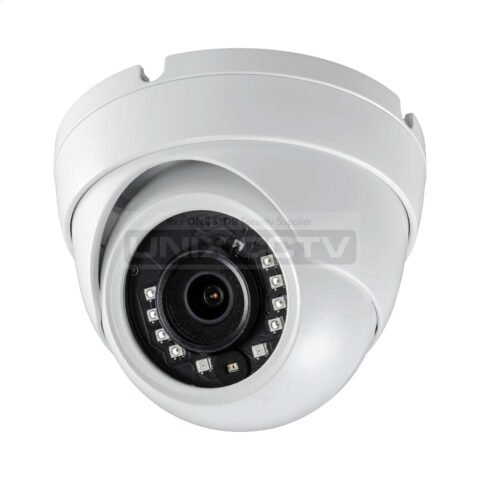

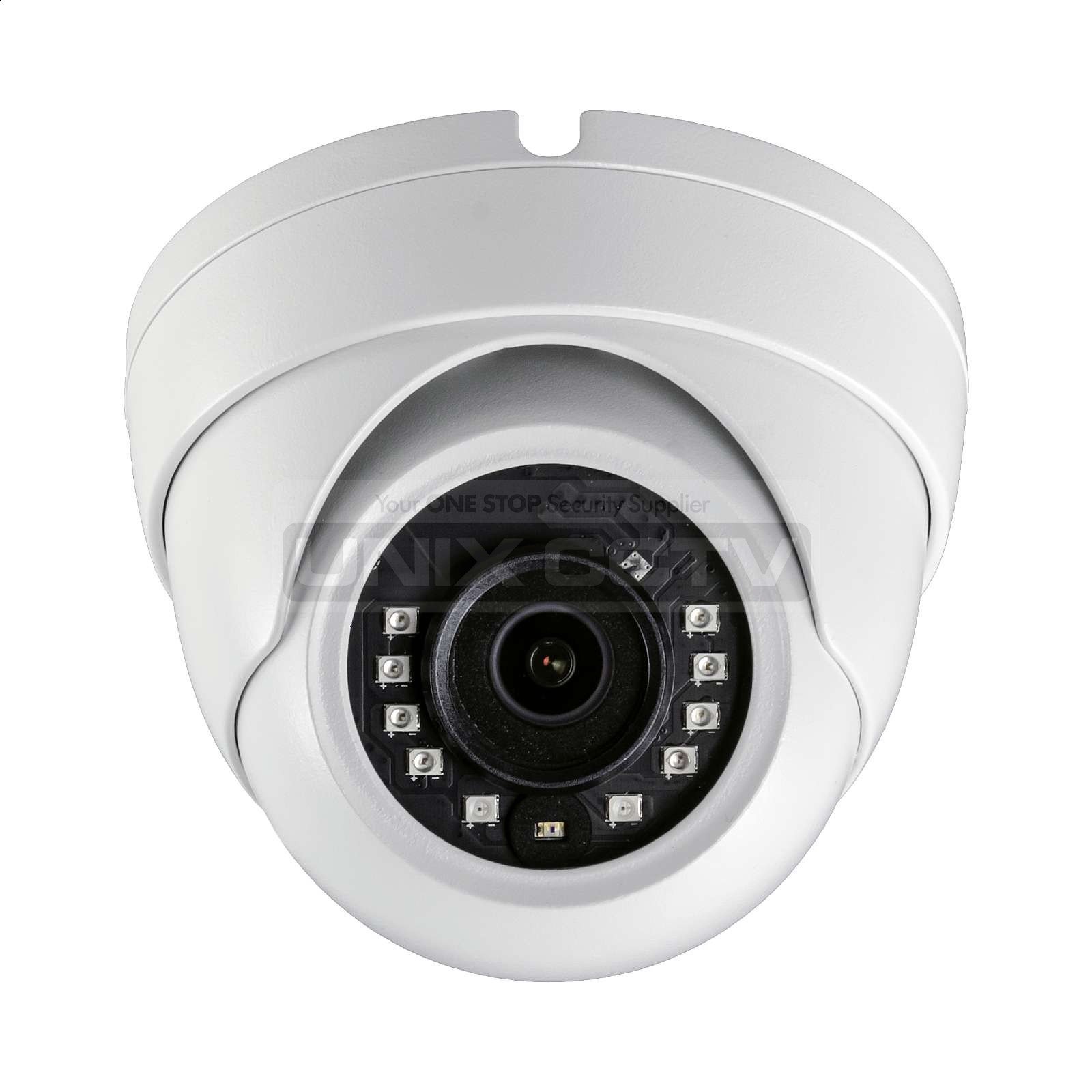

IP Power C5022 | 5MP Network IP66 Outdoor IR Eyeball Camera, H.265, 2.8mm Fixed Lens, up to 60ft, DC 12V / PoE

FEATURES
5MP ( 2592 × 1944 ) H.265 coding
Max. resolution: 2592 × 1944
ICR auto switch, true day / night
10 ~ 20m (60ft) IR night view distance
3D DNR, digital WDR, ROI coding
PoE power supply
Support smart phone, iPad, remote monitoring
IP66 ingress protection
Support three streams
SPECIFICATIONS
Camera
Image Sensor
1 / 2.7″ CMOS
Image Size
2592 × 1944
Electronic Shutter
1 / 25 s ~ 1 / 100000 s
Iris Type
Fixed iris
Min. Illumination
0.013 lux @F1.2,AGC ON; 0 lux with IR
Lens
2.8mm@F1.85, horizontal field of view: 93.4°
Lens Mount
M12
Day & Night
ICR
Wide Dynamic Range
Digital WDR
Digital NR
2D / 3D DNR
Angle Adjustment
Any angle
Video Compression
H.265 / H.264 / MJPEG
H.265 Compression Standard
Main Profile @Leve4.1 High Tier
Resolution
5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240
Main Stream
60Hz : 5MP (1 ~ 20fps) / 4MP (1~30fps) / 2K(1 ~ 30fps) / 3MP(1 ~ 30fps) / 1080P(1 ~ 30fps) / 720P(1 ~ 30fps)50Hz : 5MP (1 ~ 20fps) / 4MP (1~30fps) / 2K (1 ~ 25fps) / 3MP (1 ~25fps) / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps)
Bit Rate
128 Kbps ~ 10 Mbps
Bit Rate Type
VBR / CBR
Quality
Five levels under VBR; Freely adjustable under CBR
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Antiflicker, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Interfaces
Network
RJ45
Functions
Remote Monitoring
Web browsing, CMS remote control
Online Connection
Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol
IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, QoS
Interface Protocol
ONVIF
Storage
Network remote storage
Smart Alarm
Motion alarm
PoE
Yes
IR Distance
10 ~ 20m (60ft)
Ingress Protection
IP66
Others
Power Supply
DC12V /PoE power supply
Power Consumption
< 6W
Operating Environment
− 30°C ~ 60°C, humidity 95% or less (non-condensing)
Dimensions ( mm )
∅ 91.4 × 108
Weight ( net )
404g
