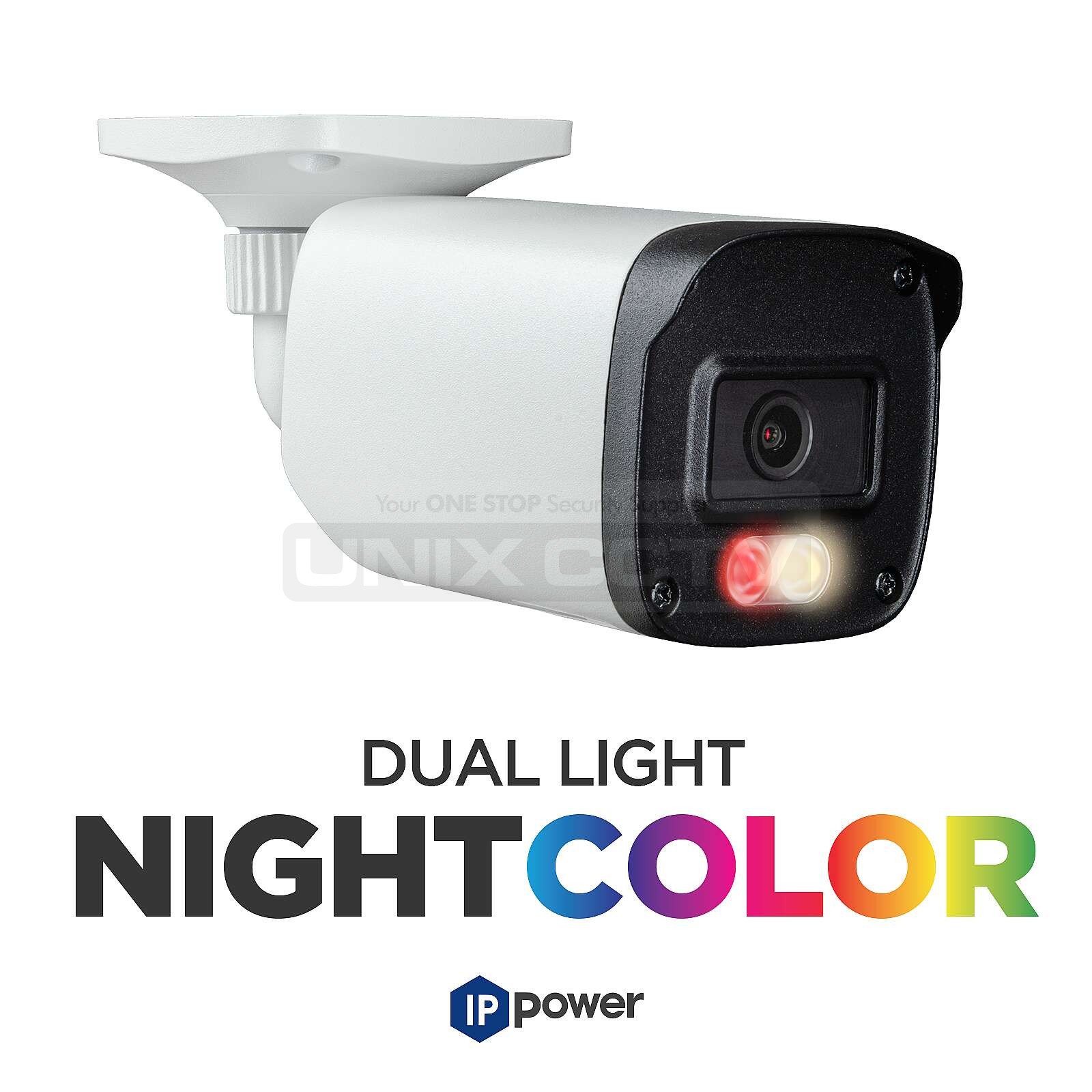

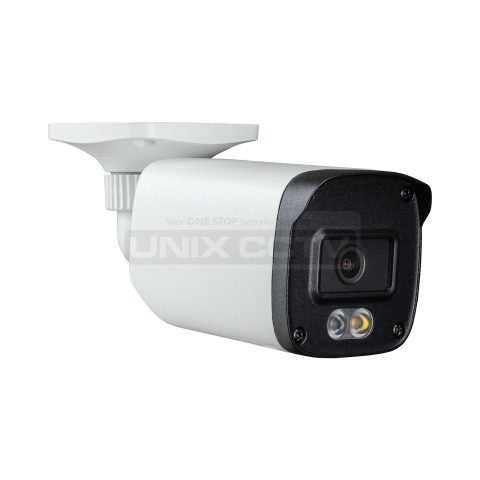

IP Power AI 4MP Dual-Light Bullet Camera, 2.8mm Fixed Lens, NDAA

FEATURES
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution: 4 MP (2560 × 1440)
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
20~30m white light view distance; 20~30m IR view distance
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support SMD
Support line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detection
SPECIFICATIONS
Camera
Image Sensor
1 / 3 “CMOS
Image Size
2560 × 1440
Electronic Shutter
1 / 1s ~ 1 / 100000s
Iris Type
Fixed Iris
Min. Illumination
0.005 lux @F1.6, AGC ON; 0 lux with illumination on
Lens
2.8mm@F1.6Horizontal FoV: 94°Vertical FoV:50°Diagonal FoV:115°
Focus
Fixed
Lens Mount
M12
Day&Night
ICR
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Digital NR
Yes
S / N Ratio
≥50dB
Angle Adjustment
Pan: 0° ~ 360°; Tilt:0° ~ 80°;Rotation: 0° ~ 360°
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEGThird stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.265 Compression Standard
Main Profile@Leve4.1 High Tier
Resolution
4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, VGA (640 × 480), 480 × 240, CIF
Main Stream
4MP / 3MP / 1080P / 720P (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps)
Sub Stream
720P / D1 / VGA / CIF (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps)
Third Stream
D1 / 480 × 240 / CIF (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps)
Bit Rate
64 Kbps ~ 6 Mbps
Bit Rate Type
VBR / CBR
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
Audio Compression
G711A / U
ROI
Each ROI to be configured separately
Interfaces
Network
RJ45
Video Output
No
Audio
1CH audio input; 1CH built-in MIC
Storage
Built-in micro SD card slot, up to 256GB
Reset
Yes
Functions
Remote Monitoring
Web browser / TVT NVR / NVMS2.X / Mobile APP
Web Browser
Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Online Connection
Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, video exception
Smart Event
Line crossing / region intrusion (human/vehicle classification), abandoned / missing object detection
General Function
Watermark, IP address filtering, video mask, heartbeat, ANR, cloud upgrade, smart supplement light, corridor pattern
PoE
Yes (IEEE802.3af)
Supplement Light Range
IR range: 20 ~ 30 m; white light range:20 ~ 30 m
Ingress Protection
IP67
Security
Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP / RTSP
DORI Distance
Detect
62m(203ft)
Observe
25m(81ft)
Recognize
12m(40ft)
Identify
6m(20ft)
Others
Power Supply
DC12V / PoE
Power Consumption
< 6W
Storage Conditions
−30 °C ~ 65°C (−22°F ~ 149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions
−30 °C ~ 60 °C (−22°F ~ 140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )
165.7 × 69 × 69
Weight ( net )
Approx. 0.39KG
Installation
Ceiling mounting; wall mounting
Certificate
CE, FCC
Environmental Protection
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94 / 62 / EC and REACH(EC1907/2006)
