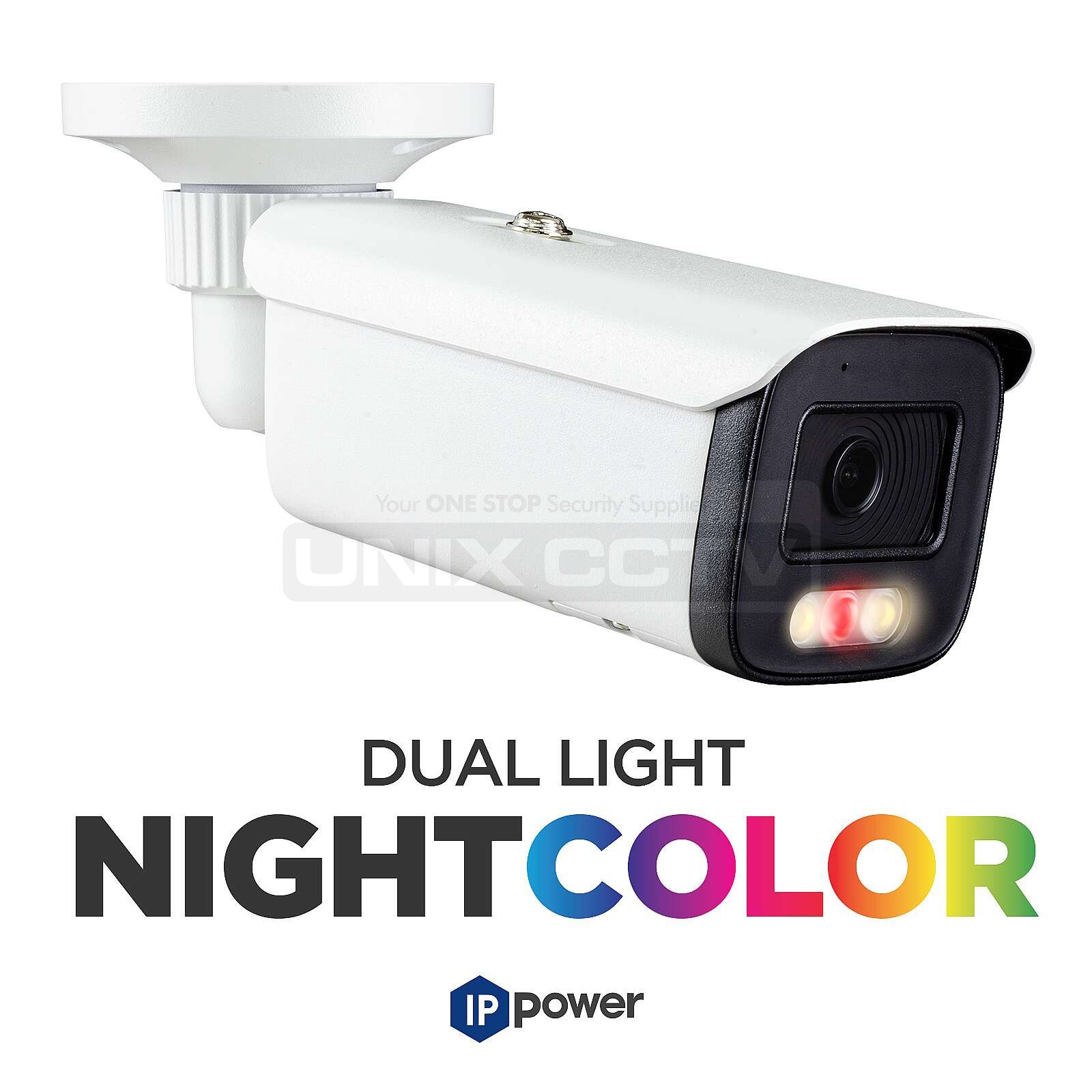

IP Power 4MP Dual-Light Bullet Camera, 2.8mm Fixed Lens, NDAA

FEATURES
H.265/H.264/MJPEG coding
Max. resolution: 2560 × 1440
30-40m supplement light range
24/7 full color imaging
3D DNR, HWDR, HLC and BLC
ROI coding
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP67 ingress protection
Support three streams
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent Analytics
SPECIFICATIONS
Camera
Image Sensor
1 / 3 “CMOS
Image Size
2560 × 1440
Electronic Shutter
1 / 1 s ~ 1 / 100000 s
Iris Type
Fixed Iris
Min. Illumination
0.003 lux@ F1.0, AGC ON; 0 lux with LED ON
S / N Ratio
≥50dB
Lens
2.8 mm @F1.0, H.FoV: 99°; V.FoV:53°; D.FoV:116°3.6 mm @F1.0, H.FoV: 79°; V.FoV:44°; D.FoV:93°
Focus
Fixed
Lens Mount
M12
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
No
Digital NR
3D DNR
Angle Adjustment
Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°
Video Compression
Main stream: H.265 / H.264Sub stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG
H.264 Compression Standard
Baseline Profile / Main Profile / High Profile
Resolution
4MP (2560 × 1440 ), 3MP (2304 × 1296 ),1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, VGA(640 × 480), CIF, 480 × 240
Main Stream
60Hz:4MP / 3MP / 1080P / 720P(1 ~ 30fps); 50Hz:4MP / 3MP / 1080P / 720P(1 ~ 25fps)
Sub Stream
60Hz : 720P / D1 / VGA / CIF(1 ~ 30fps); 50Hz: 720P / D1 / VGA / CIF (1 ~ 25fps)
Third Stream
60Hz : D1 / CIF / 480 × 240 (1 ~ 30fps); 50Hz: D1 / CIF / 480 × 240 (1 ~ 25fps)
Bit Rate
128 Kbps ~ 8 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Interfaces
Network
RJ 45
Video Output
NO
Audio
1CH audio input; 1CH built-in MIC
Storage
Built-in micro SD card slot, up to 256GB
Reset
Yes
Functions
Remote Monitoring
Web Browser / TVT NVMS2.0 / NVR / mobile APP
Web Browser
IE11(plug-in required) / Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Online Connection
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Intelligent Analytics
Video exception detection, intrusion detection, line crossing detection and abandoned / missing object detection
Smart Alarm
Motion detection, SD card error, SD card full
General Function
Watermark, video mask, heartbeat, corridor pattern
Security
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP / HTTPs
PoE
Yes (IEEE802.3af)
White light range
30 ~ 40 m
Ingress Protection
IP 67
DORI Distance
Detect
57.76m(189.50ft)
Observe
23.11m(75.82ft)
Recognize
11.55m(37.89ft)
Identify
5.78m(18.96ft)
Others
Power Supply
DC12V / PoE
Power Consumption
< 10W
Storage Conditions
−30 °C ~ 65°C (−22°F ~ 149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions
−30 °C ~ 60 °C (−22°F ~ 140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )
217.7 × 80.5 × 80.3
Weight ( net )
Approx. 0.64KG
Installation
Ceiling mounting; wall mounting
Certificate
CE, FCC
Environmental Protection
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94 / 62 / EC and REACH(EC1907/2006)
