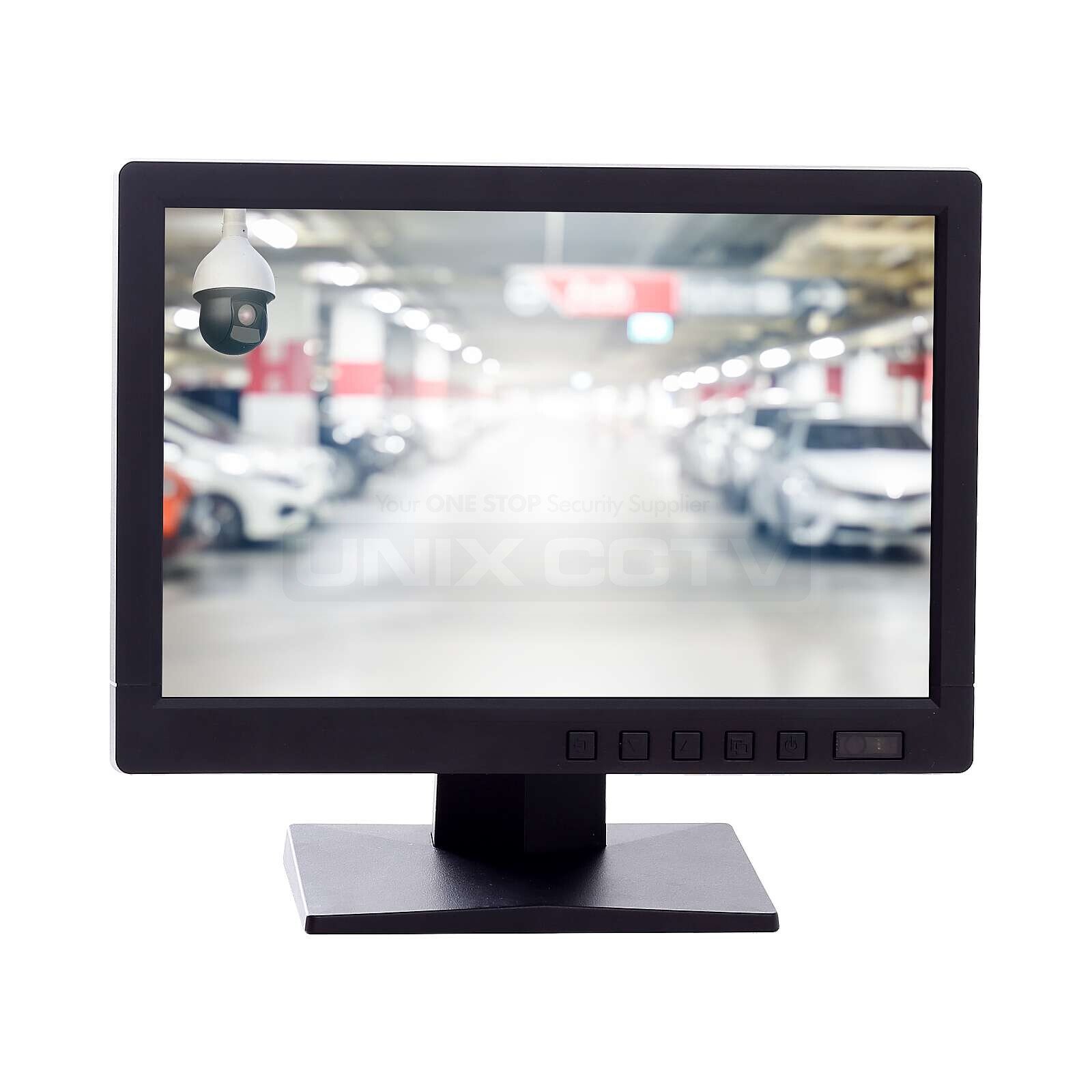

Eyemax E1008HVB | 10in CCTV Monitor, Wide Angle View, BNC Loop Out, up to 1080p Input Signal, HDMI + VGA + BNC IN + Audio In, Speaker Built-in

FEATURES
Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA, BNC analog inputs Fully tested, approved and licensed by the HDMI Forum to bear the official HDMI logo
Support 3D comb filter and 3D de-interlace, High quality image
Auto-on when VGA or DHMI DVR/NVR video is detected
Bright LED illuminated panel with ultra wide viewing angle.
Built in stereo 8Ω × 2W speakers and audio amplifier
Included desk stand is easily removable for standard VESA mounting Power cord, VGA and audio accessory cables included.
CE, FCC and UL certified
SPECIFICATIONS
Screen diagonal dimension
10.1 inches
Viewable area W x H(mm)
216.96 × 135.6
Led Type
LED
Pixel Pitch
0.1695 (H) × 0.1695 (V)
Screen Maximum Resolution
1280 × 800
Supported input Resolutions
720 × 400; 640 × 480; 800 × 600; 1024 × 768; 1280 × 800; 1920 × 1080
Refresh Rate(vertical Frequency)
60,70, 75 Hz depending on resolution
Color Depth
24 bits; 16.7 Million colors
Brightness
300 cd/㎡
Auto Adjust
Yes
Monitor Aspect Ratio
16:10
Display Aspect Ratio
OSD selectable 16:9 or 4:3
Horizontal TV Lines
600 lines above
Contrast Ratio
800:1
Response Time(ms)
8
View Angle H/V(degrees)
160°/160°
Digital Video Inputs
HDMI up to 1920 × 1080
Port inputs
HDMI + VGA + BNC IN + Audio in
Port outputs
BNC OUT
Speakers
8 Ω 1 Watt/channel
Filter type
3D Comb filter
De-interlace & Noise Reduction
3D De-interlace
DC
Yes
OSD Languages
English, Spanish, German, Chinese, French, Italian
Monitor Body Dimensions(W x L x D) (mm)
245.61 × 172.83 × 42.7
Max Dimensions Monitor +Stand (mm)
245.61 × 230.88 × 85
Case & stand material
Plastic
VESA Mounting Pattern
75 × 75 ; location centered on monitor body
Base/Stand included
Yes
Net weight
1.5kg
Gross Weight
2kg
Power- Watts(on and standby)
<15W
Power input
12V DC
Operating Temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature
−4°F ~ 140°F(−20°C ~ 60°C)
Operating Humidity
10 ~ 85%
Certifications
CE, FCC certificates
