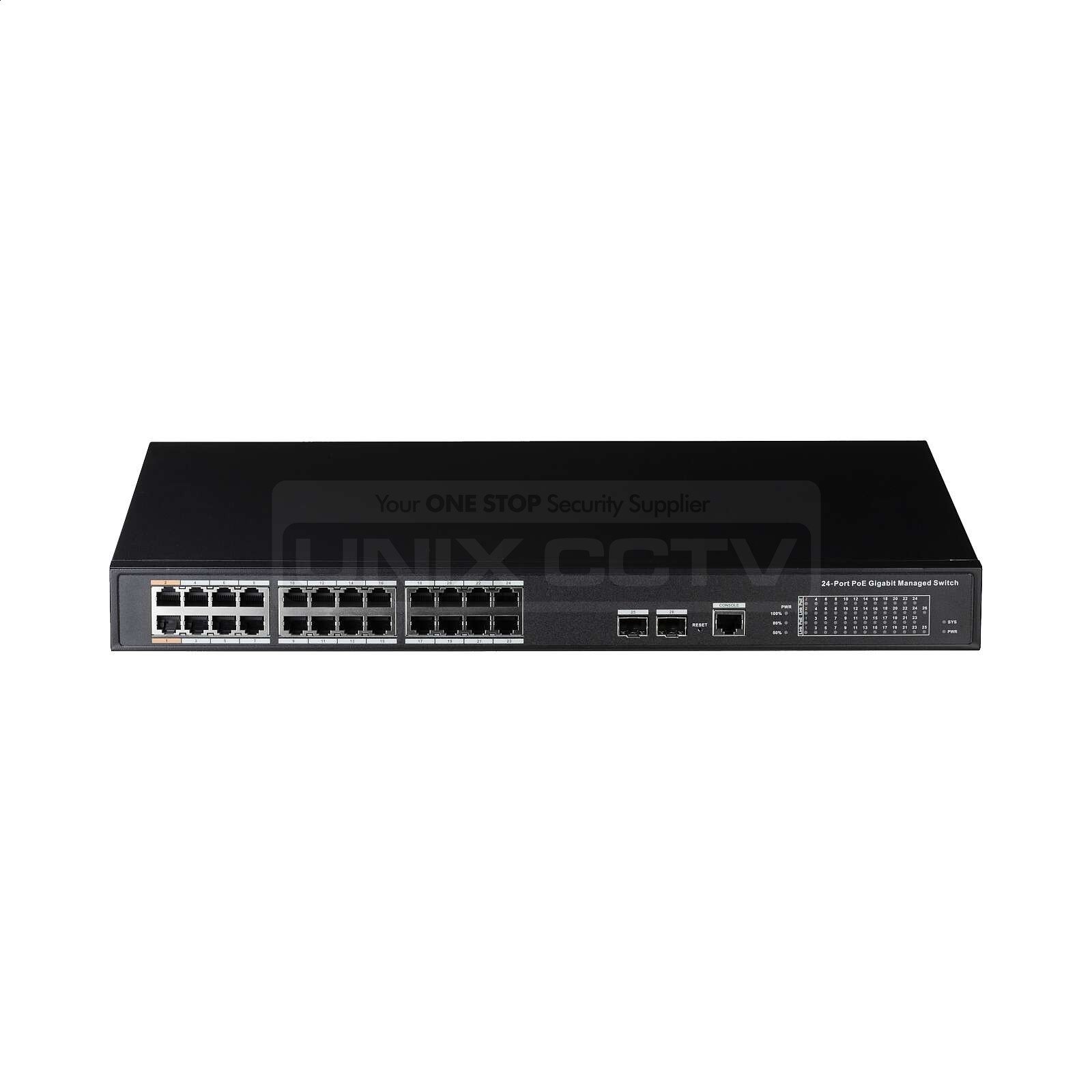

Eyemax 24-Port PoE Gigabit Managed Switch

FEATURES
Layer 2 network management PoE switch
Support IEEE802.3af, IEEE802.3at standard
Support Hi-PoE 60W
Network Redundancy: STP/RSTP/MSTP
Support IPv4/IPv6, and DHCP
Network management based on SNMP
Configuration: Web, Telnet, CLI Command
QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/ v3, HTTPS, and SSH/SSL
Large data cache(4M), real-time transmission
MAC auto study and aging, MAC address list capacity is 8K
EMC high protection design
SPECIFICATIONS
Technical Specification
Ethernet Port
24*10/100/1000 Base-T (PoE power supply)2*100/1000 Base-X
RS232 Serial Console
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
PoE Power Consumption
Port1 and port 2 support Hi-PoE 60W Each power ≤30W, Total≤360W
PoE Protocol
IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity
52Gbps
Packet Forwarding Rate
38.688Mpps
Packet Buffer Memory
4Mb
Application Humidity
5%~95%
Power
AC100-240V, 50/60Hz
Lightning Protection
Common Mode 2KVDifferential Mode 1KV
Working Temperature
−10°C ~ 55°C
Dimension(W×D×H)
440mm x 300mm x 44mm
Service Characteristics
System
Username / password: admin/adminIP Address :192.168.1.110/24
PoE Budget
Total≤360W
MAC Table
8K
NTP
Support
DHCP
Support DHCP client/serverSupport DHCP snooping
VLAN
802.1Q Standard VLAN
Port Aggregation
Manual aggregation/LACP
Mirroring
Many-to-one port mirroring
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Multicast
IGMP Snooping v1/v2/v3
Security Features
Users management, SSH, HTTPS, SNMP v1/v2/ v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
Spanning tree
Support STP/RSTP/MSTP
LLDP
Support
MAC Table
Support MAC address table configuration
QoS
Support QoS base on CoS/DPL/PCP/DEIEach port support 8 output queue Support port shapingSupport port tag remarkingSupport QoS base on DSCP
System Maintenance
Support the configuration file upload/downloadSupport the updated packet uploadSystem log
Network Management
WEB(http protocol), serial, SNMP
