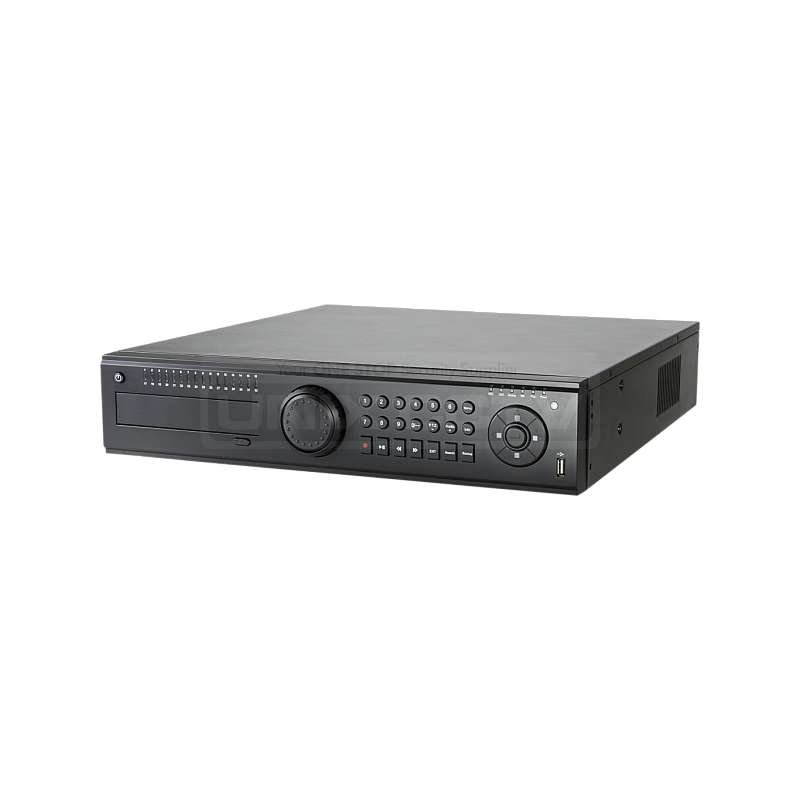

32 Channel Network Video Recorder(NVR) for IP cameras up to 3MP w/ 8 HDD Slots

Description
This series are standard 32 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. It support 32 CH IP input, simultaneous 4 CH playback, and HDMI 1080P high resolution display, with standard 2U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
FEATURES
Support 32 CH 3MP@30fps or 1080P@30fps or 960P@30fps or 720P@30fps IP input
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : support 4 CH playback
Search : calendar / time, events ( alarm, motion )
Express and flexible backup via USB, network or DVD-RW ( SATA )
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
Powerful smart phone surveillance supporting iPhone, Andriod
SPECIFICATIONS
SYSTEM
Compression
Standard H.264 / MPEG4
CPU
Cortex A9
OS
Embedded Linux
VIDEO
Output
VGA × 1 : 1920 × 1080
HDMI × 1 : 1920 × 1080
IP INPUT
Resolution
3MP / 1080P / 960P / 720P
Frame Rate
32 CH 3MP / 1080P / 960P / 720P @30 fps
AUDIO
Input
32 CH IPC input
Output
RCA × 1
2-way audio
RCA × 1
RECORD
Resolution
3MP : 2048 × 1536
1080P : 1920 × 1080
960P : 1280 × 960
720P : 1280 × 720
D1 : 704 × 576
Frame Rate
800 fps ( PAL ), 960 fps ( NTSC )
Bit Rate
256Kbps ~ 12Mbps
Encode
CBR
Quality
6 Level
Mode
Manual, Timer, Motion, Sensor
File Manager
Lock, unlock, reserving time
PLAYBACK
Playback
4 CH
Search
Time/calendar search, event (motion,external alarm)
Smart Search
Highlighted date and time to display the channel record
Function
Play, Pause, FF, FB, Digital zoom
ALARM
Mode
Sensor, Motion, Video Loss
Input
16 CH local input, support IPC alarm input
Output
4 CH
Triggering
Record, PTZ move, alarm out, e-mail, etc
NETWORK
Interface
RJ45 10M/100M/1000M adaptive ethernet network port × 1
Protocal
TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Others
20 users online, dual stream
CELLPHONE
OS
iPhone, Andriod
Function
Multi-screen surveillance, record, snapshot, PTZ control, save the device list
PORT
HDD
SATA × 8
RS485
RS 485 × 2, support PTZ and keyboard
USB
USB 3.0 × 1, USB 2.0 × 1, one for mouse, another for USB backup device
Remote Controller
Yes
OTHERS
Power Supply
ATX
Consumption
< 15W (without HDD)
Dimensions
430 mm × 450 mm × 89 mm (W x D x H)
Work Environment
14°F ~ 131°F(−10°C ~ 55°C), 10% ~ 90% Humidity
